In Stock and ready for immediate shipment

Contact us at [email protected] or
call 1-800-696-2665 for more info and pricing

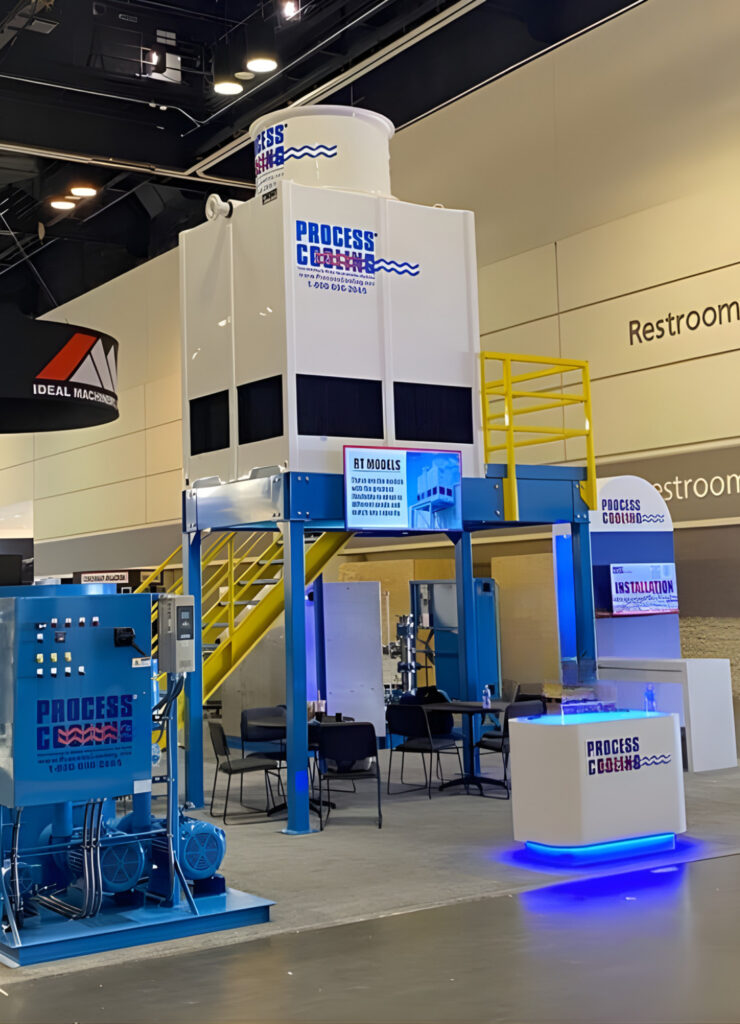

Nominal 107-ton PROCESS COOLING TOWER

Model RTU-606175-A, Induced Draft, counter-flow cooling tower. The unit shall have the capacity to cool 323 GPM of water from 95 °F to 85 °F at a 78°F entering wet bulb temperature. The cooling tower is constructed of thick gauge, fiberglass reinforced polyester with special gel coat finish for weather resistance and UV protection.

  • 7.5 HP, premium efficient, marine duty rated TEAO fan motor designed for cooling tower service. Fan motor includes epoxy coated (internal and external) cast iron construction.
  • CTI certified for capacity at design conditions.
  • 15-Year Material and Labor Warranty on the FRP casing and structure.
  • 5-Year Parts Warranty for inlet louvers, fill media, drift eliminators, and hot water distribution system.
  • 5-Year Parts Warranty for the fan motor (pro-rated after 2 years).
  • 18-Month Parts Warranty for the cooling tower fan.
  • Flanged 6” cold water bottom outlet.
  • Approximate Dimensions: 80ʺ L x 74ʺ W x 129.5ʺ H
  • Shipping Weight per Tower: 2,141 lbs. | Operating Weight: 4,023 lbs.

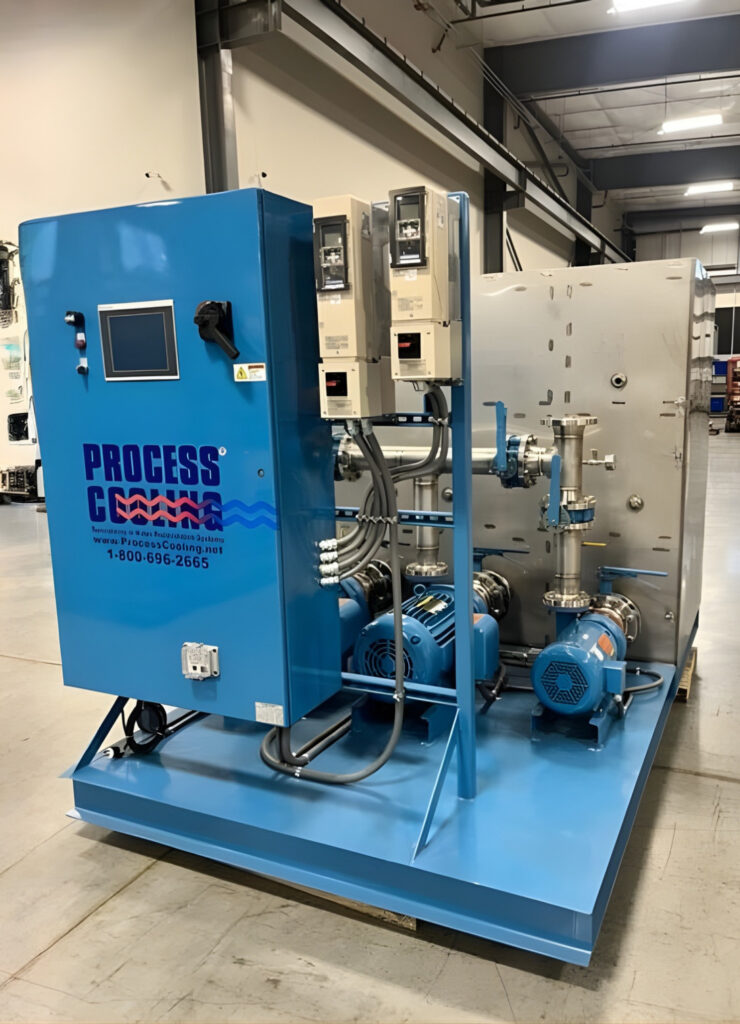

Stainless Cooling Tower WATER PUMP TANK

— UL APPROVED SYSTEM CONTROL PANEL (460V)
— VARIABLE FREQUENCY DRIVES WITH AB PROCESSOR, INTEGRATED DISCONNECT SWITCH (460V)

  • 10 ga. Stainless steel tank construction of 1,080-gallon capacity. All stainless-steel construction eliminates the need for an internal coating and provides superior corrosion protection. Overall tank size shall be 6ʼ Long x 4ʼ Wide x 6ʼ Tall.
  • Tank walls and interior angle supports for lid and baffle bracing and shall be constructed of Type-304 stainless steel.
  • Internal tank baffle, designed to separate the hot well from cold well. Baffle shall be constructed so there is a 6” opening from the bottom and a 12” opening at the top to allow the tank water level to equalize.
  • (1) 25 Hp Process Water Pump, designed to deliver 360 GPM @ 152' TDH.
  • (1) 25 Hp Dual Purpose Stand-by Pump, designed to deliver 360 GPM @ 152' TDH.
  • (1) 10 Hp Tower Water Pump, designed to deliver 360 GPM @ 65' TDH.
  • Pumps will be end-suction, close-coupled to premium efficient TEFC motors and constructed with stainless steel impellers, stainless steel shaft sleeves with mechanical seals. The pump housings will be constructed of cast iron.
  • Stainless Steel Pump trim includes suction reducers with shut-off valves, discharge increasers with balancing valves, discharge check valve on the process pump, and a chemical treatment valve located on each pump discharge.

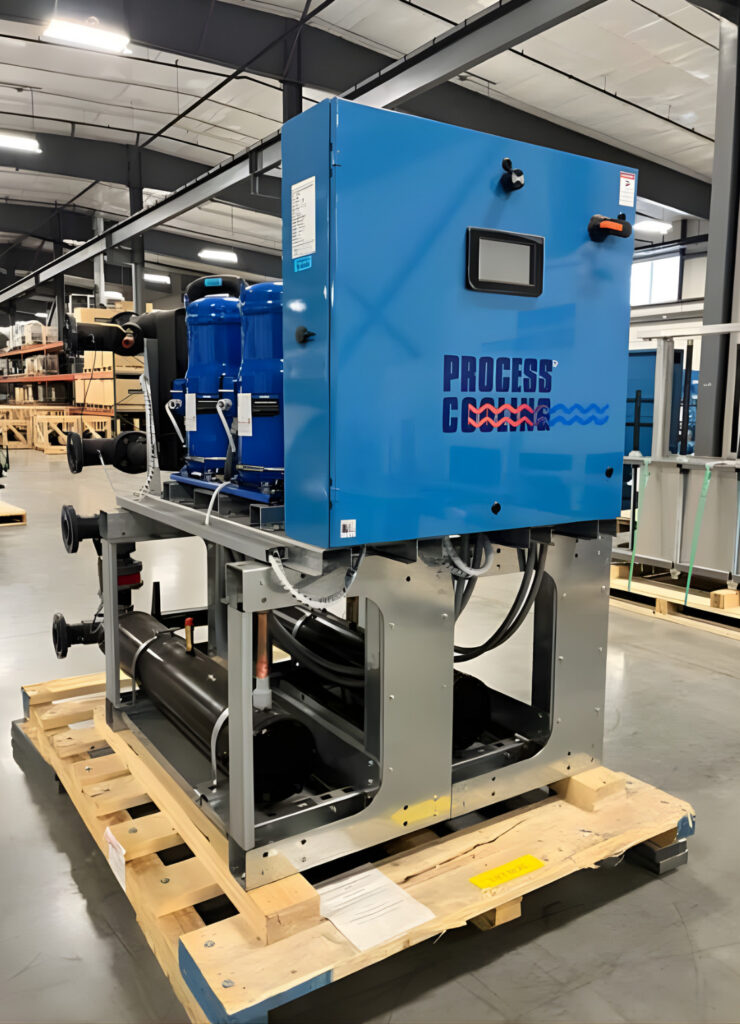

Nominal 40 Ton, DUAL-CIRCUIT WATER-COOLED CHILLER

Model PCS-TSEW-040D, water-cooled chiller comes with:
  • 460V / 3-phase / 60 Hz
  • Standard Controller with 7” HMI
  • BACNet MS/TP Communications
  • Non-fused Rotary Disconnect
  • Hot Gas By-pass Valves
  • PVC Manifolds
  • Flow Sensor (shipped loose)
  • First year labor warranty.
  • 5-yr. Extended Compressor Warranty. Extends the manufacturer’s compressor warranty from the standard one year to five years. This warranty covers the compressor only, not labor.
  • Approximate Dimensions: 87″ L x 50″ W x 69″ H

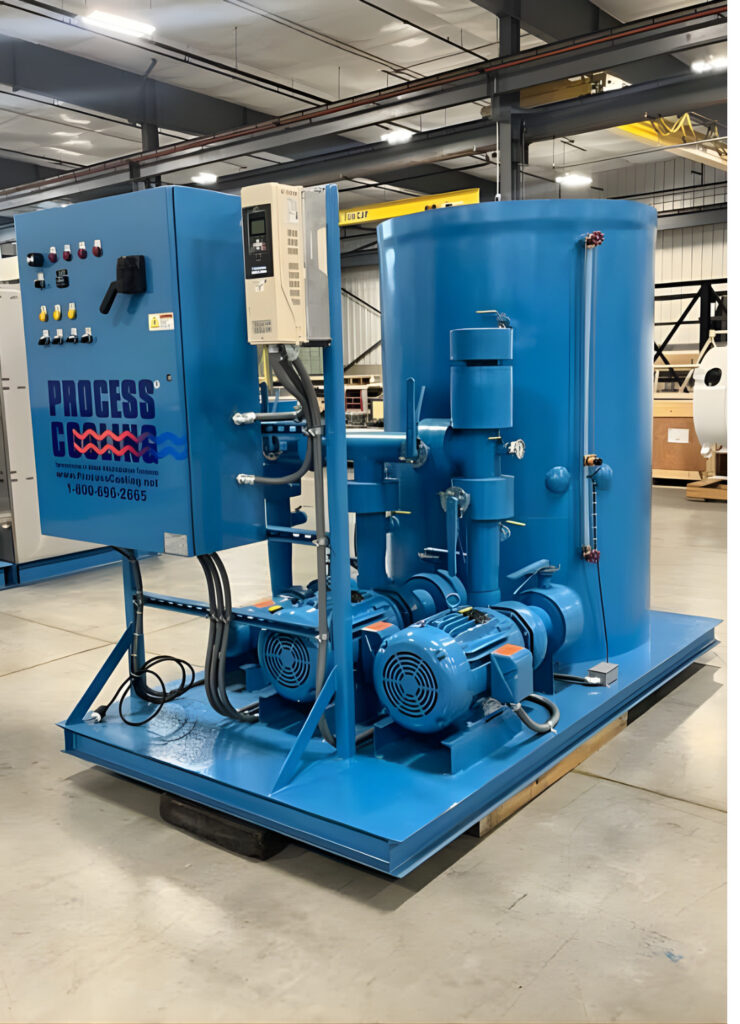

Insulated Stainless Steel CHILLED WATER PUMP TANK

— UL APPROVED CONTROL SYSTEM WITH ALARMS (460V)
— VARIABLE FREQUENCY DRIVE WITH INTEGRATED DISCONNECT SWITCH (460V)

Model SSTNK3.5DIAx6I, Chilled Water System Pump Tank is complete with:

  • Insulated, stainless steel tank construction of 514-gallon capacity. All stainless-steel construction eliminates the need for an internal coating and provides superior corrosion protection. Overall tank size shall be 3.5ʼ Dia. x 6ʼ Tall.
  • Tank walls and interior angle supports for lid and baffle bracing and shall be constructed of Type-304 stainless steel.
  • Internal tank baffle, designed to separate the hot well from cold well. Baffle shall be constructed so there is a 3” opening from the bottom and a 3” opening at the top to allow the tank water level to equalize.
  • (1) 15 Hp Chilled Water Process Pump, designed to deliver 192 GPM @ 160' TDH.
  • (1) 15 Hp Dual Purpose Stand-by Pump, designed to deliver 192 GPM @ 160' TDH.
  • (1) 3 Hp Chiller Evaporator Pump, designed to deliver 96 GPM @ 76' TDH.
  • Pumps will be end-suction, close-coupled to premium efficient TEFC motors and constructed with stainless steel impellers, stainless steel shaft sleeves with mechanical seals. The pump housings will be constructed of cast iron.
  • Steel Pump trim includes suction reducers with shut-off valves, discharge increasers with balancing valves, discharge check valve on the process pump, and a chemical treatment valve located on each pump discharge.
  • (1) 3″ x 2-1/2” Large-H discharge cross-connect, constructed of Sch. 40 B.I. pipe and fittings. Cross-connect shall be valved so the dual-purpose stand-by pump can be used in place of either of the primary pumps, if required, without requiring a system shut-down. Includes orifice plate and all required support bracing.
  • Pumps and all required pump trim will be assembled prior to shipping. All hardware used on the system shall be zinc-coated.
  • Tank trim includes an aluminum composite cover, sight glass level indicator, 3/4” manual fill water make-up assembly, 2” drain port with shut-off ball valve, and 3” FNPT overflow connection.
  • Tank and equipment will mount directly to a 6″ structural steel channel base.
